Laser Marking Machine
Industrial Fiber Laser Marking Machine Manufacturers & Suppliers
Do away with the conventional ways of marking and engraving.Add your technology-driven masterpiece, Laser Marking Machine to your business and witness a considerable turnaround in your marking and engraving business. The premium quality Laser Marking Machine from CES is famous across industry circles for precision. We are a prominent manufacturer, supplier and exporter of Laser Marking Machine.
Applications

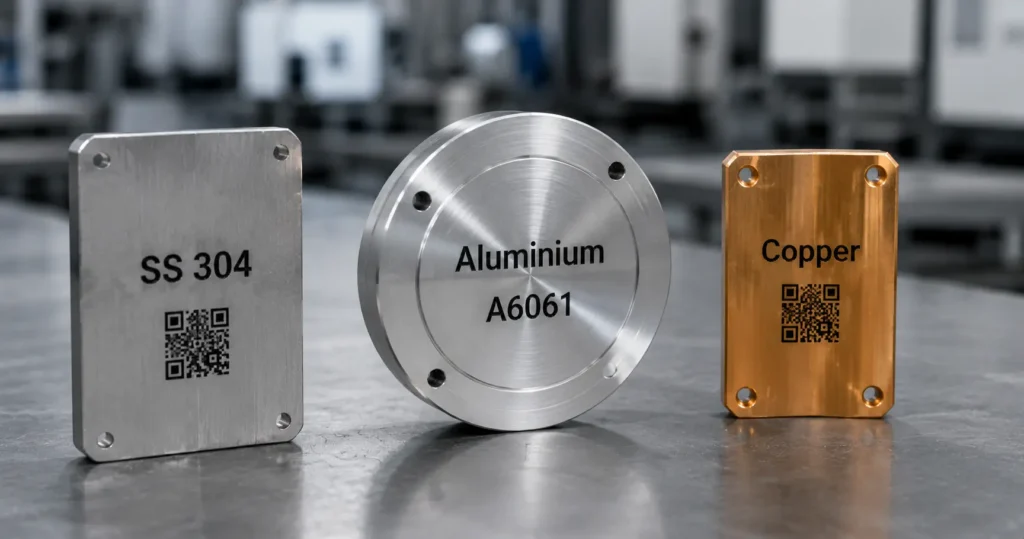

The premium quality Laser Marking Machine is tailor-made for marking and engraving across a wide range of materials, including metals and plastic.
Product Features
- Precision-driven Output - ensures flawless and precise marking.
- High-Speed Operation–considerably reduces marking time.
- User-Friendly Design –no specific training is required to operate, it’s easy to operate.
- Safe To Use – the safety of workers is at the center stage, it’s easy to use.
Technical Data
| Model | LM-20 |
|---|---|
|
Mode of operation |
Pulsed |
|
Polarization |
Random |
|
Central emission wavelength |
1064 nm ,Q-switched operation Output power adjustment range 10%-100% |
|
Emission Bandwidth
(FWHM) |
<10 nm |
|
Long-term average power instability |
<5% |
|
Pulse width, (FWHM) |
100 ns |
|
Laser switching ON time |
180 μsec |
|
Laser switching OFF time |
180 μsec |
|
Pulse Repetition Rate* kHz |
20-80 kHz |
|
Energy per pulse (PRR = 20 kHz) |
0.95 mJ |
|
Typical beam quality, M2 |
<1.8 |
|
Output fiber delivery length |
3m |
|
Operating voltage |
220V |
|
Scanning Speed |
0-7000mm/s |
|
Marking Speed |
0-5000mm/s |
|
Spot size |
≤ 40 micron (F-theta 160) |
|
Cooling unit |
Air cooled |
|
Red point laser |
650nm , visible red light for marking guide |
|
Continuous working time |
≥18h |
|
Humidity |
45～85% (no condensation) |
|
Operating temperature |
0~40℃ |
Product Advantage
Independent R&D dynamic machine body
26 years manufacturing experience, the bed adopts independent research and development, dynamic design, forced air cooling measures, adopts Mortise & tTenon structure, increase the strength 50% then cast iron machine body, keep high cutting accuracy.
Aviation Aluminum Gantry
The whole structure is made of steel die casting, which is finished after artificial aging and solid solution treatment, so that the beam rigidity, surface quality, integrity and other performance are all excellent. At the same time, it has the characteristics of high flexibility, which can achieve high-speed cutting of all kinds of graphics under the condiotion of satisfying the precision.
Partition dust removal system
Independent R&D of forced cooling way, remove the dusk for each processing area separately. Simple structure, good effect in sealing exhausting, low energy consumption, improve the dust removal effect in this area, workpiece much better, and also solved the environment pollution, and bring effective protection for operators and machine.
Yaskawa Servo Motor
Adopt Japanese Yaskawa servo motor , and the closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly and reliably, and is maintenance-free.
